Zhiyun Smooth 5S AI Pro

The Zhiyun Smooth 5S AI Pro is a state-of-the-art 3-axis gimbal designed specifically for smartphone filmmakers. With its orthogonal 3-axis design, it offers impressive stability and enables smooth, cinematic camera movements such as pans, tilts and crane movements. The Smooth 5S AI Pro is equipped with a powerful fill light that achieves a maximum illumination of 680 lux and a robust airflow design for efficient heat dissipation. Two additional magnetic fill lights, combined with the built-in unit, provide an unbeatable lighting effect of 2040 lux at the tip (only 1 additional fill light included).

An outstanding feature is the magnetic AI tracker, which enables fast and responsive target tracking, even with strong light interference. Intelligent gesture control allows users to start and stop target tracking with simple hand gestures, which is especially useful for long-distance solo video shooting. The Smooth 5S AI's all-in-one control panel offers comprehensive control over all parameters typically found on high-end cameras. In addition, the gimbal supports the use of two dedicated apps: ZY Cami for intelligent recording functions and StaCam to unleash creative potential.

Technical features:

Information to the picture: Delivery without Smartphone/Tablet PC

ProductIP AR Services Galvanistraat 1NL 6716AE Ede

• Orthogonal 3-axis structure with 360° rotation
• Sophisticated design:

Axis arms made of structured, translucent material

Control panel made of two-layer cover with translucent housing

Multi-layer spraying techniques for a smooth, glossy finish

Handle additionally coated in silicone

• Axis arms made of structured, translucent material
• Control panel made of two-layer cover with translucent housing
• Multi-layer spraying techniques for a smooth, glossy finish
• Handle additionally coated in silicone
• All-in-one control panel for setting all parameters
• Support for 2 apps:

ZY Cami app with video templates

StaCam app for creative effects

• ZY Cami app with video templates
• StaCam app for creative effects
• Integrated Fill light with 650 lux peak illuminance
• Stabilisation algorithm and high-torque motors ensure smooth running in everyday work
• Magnetic AI tracker for instant object tracking and intelligent control

AI gesture control

• AI gesture control
• Battery life:

Max: 26 hours (fill lights off; standby and PF mode; tested with iPhone XR (220 g))

Max: 7 hours (with AI tracker switched on and integrated fill light)

Min: 2:20 hours (3 fill lights with highest brightness)

• Max: 26 hours (fill lights off; standby and PF mode; tested with iPhone XR (220 g))
• Max: 7 hours (with AI tracker switched on and integrated fill light)
• Min: 2:20 hours (3 fill lights with highest brightness)
• Charging time:

Max: 3:30 hours (at 25°C ambient temperature and with USB power adapter (5V / 2A))

Min.: 2 hours (at 25°C ambient temperature and fast charging technology (15 W))

• Max: 3:30 hours (at 25°C ambient temperature and with USB power adapter (5V / 2A))
• Min.: 2 hours (at 25°C ambient temperature and fast charging technology (15 W))
• Battery:

Operating voltage: Max: 8.4 V / Standard: 7.4 V / Min: 6.5 V

Operating current: Max: 3000 mA / Min: 70 mA

Operating temperature: Max: 45°C / Standard: +25°C / Min: -10 °C

Output voltage standard: 5 V

• Operating voltage: Max: 8.4 V / Standard: 7.4 V / Min: 6.5 V
• Operating current: Max: 3000 mA / Min: 70 mA
• Operating temperature: Max: 45°C / Standard: +25°C / Min: -10 °C
• Output voltage standard: 5 V
• Stabiliser:

Mechanical swivelling range: Max: 180° / Standard: 360° /Min: -180°

Mechanical rolling range: Max: 259° / Standard: 349° / Min: -90° (also when folded)

Mechanical tilt range: Max: 209° / Standard: 349° / Min: -140° (even when folded)

• Mechanical swivelling range: Max: 180° / Standard: 360° /Min: -180°
• Mechanical rolling range: Max: 259° / Standard: 349° / Min: -90° (also when folded)
• Mechanical tilt range: Max: 209° / Standard: 349° / Min: -140° (even when folded)
• Bluetooth 5.1
• Suitable for smartphones: < 10 mm

Mounting clamp: 50 - 90 mm

Usable weight: 150 - 300 g

• Mounting clamp: 50 - 90 mm
• Usable weight: 150 - 300 g
• Dimensions (W x D x H): 311 x 168 x 52 mm
• Weight with battery: 644 g

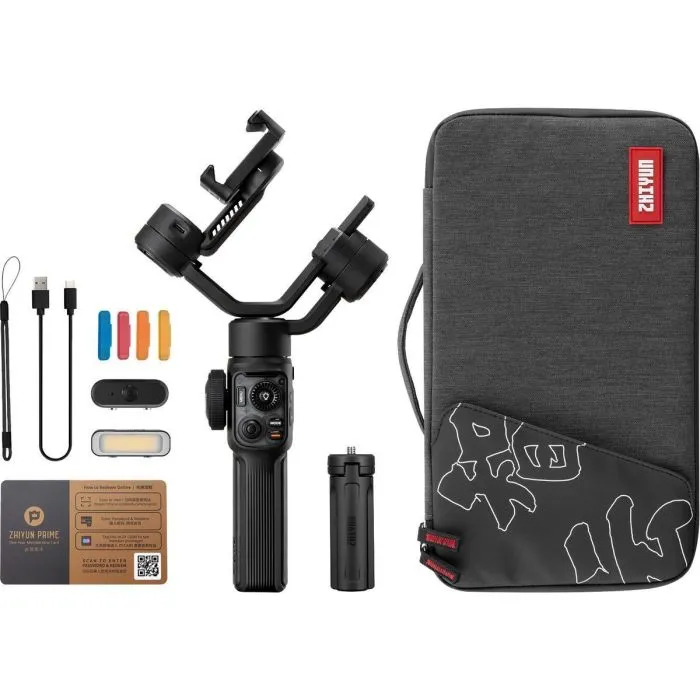

• Included in delivery:

1x SMOOTH 5S AI gimbal

1x tripod (M2)

1x USB Type-C charging cable

1x AI tracker

1x additional Fill light

4x Fill light filter

1x Wrist strap

1x Storage bag

• 1x SMOOTH 5S AI gimbal
• 1x tripod (M2)
• 1x USB Type-C charging cable
• 1x AI tracker
• 1x additional Fill light
• 4x Fill light filter
• 1x Wrist strap
• 1x Storage bag
