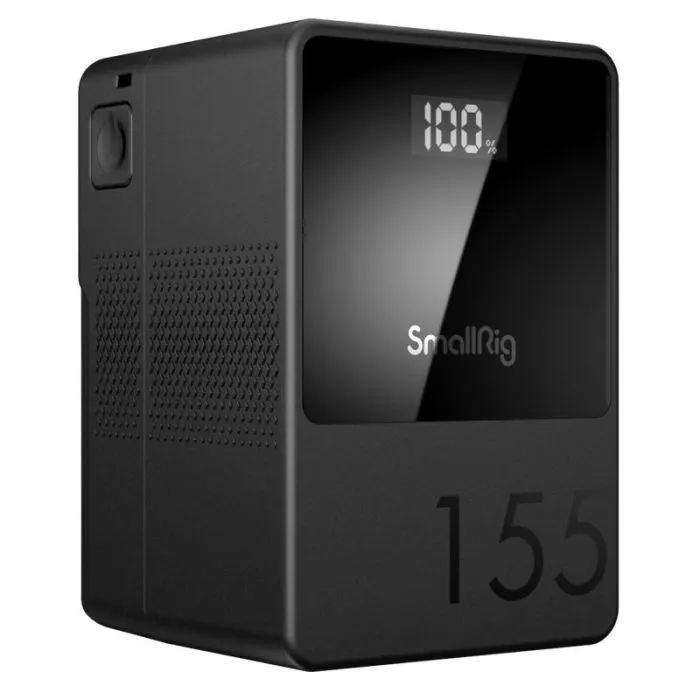

SmallRig 3581 V-Mount Battery Mini VB155

The SmallRig Mini VB155 is a V-mount battery at roughly 70% of the size of a standard V-mount battery, thanks to a highly integrated design that makes it lighter and more portable. The integrated BMS chip supports multiple fast-charging protocols and bidirectional USB-C PD charging up to 65 W. The battery has built-in protection against over-current, short-circuit, over-temperature and over-voltage.

• Capacity: 14.8 V, 10.5 Ah, 155 Wh
• Rated power: discharge 155 W, charge 65 W
• V Mount / D-TAP input: 8 A (max); output: 14.8 V / 14 A (max)
• USB-C input/output: max 65 W; USB-A output
• DC1 output: 8 V / max 3 A; DC2 output: 12 V / max 3 A
• OLED display for tracking battery status
• Charging methods: 16.8 V D-TAP charger or USB-C charger with PD fast charging (up to 65 W)
• Working temperature: -10℃ to 45℃
• Package: 1 VB155 Mini V-Mount battery, user manual
