Panasonic AW-UE50KEJ 4K Integrated Camera, 1/2.5-type MOS, Black

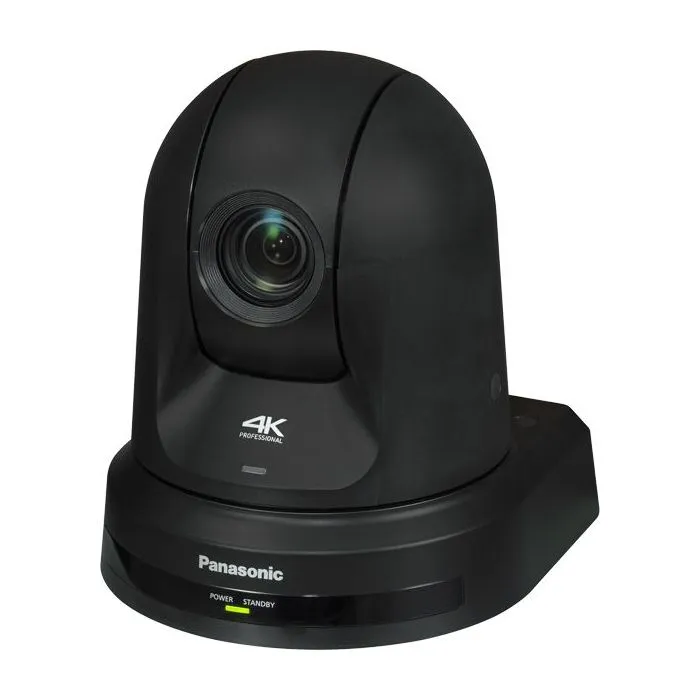

The Panasonic AW-UE50KEJ is a compact black PTZ camera built for fixed installations and live production where 4K capture and remote operation are required. It has a 1/2.5-type 4K MOS sensor and a 24x optical zoom to cover wide rooms and distant subjects.

The camera streams over IP using H.264 or H.265 and supports protocols such as RTSP/RTP, RTMP/RTMPS and SRT. PoE+ provides power and data over a single cable. The direct-drive pan/tilt mechanism offers smooth, precise movement.

• Sensor: 1/2.5-type 4K MOS, approx. 8.49 MP effective
• Zoom: 24x optical; i.Zoom 28x (UHD) and 36x (FHD); digital extender 1.4x/2x
• Focal range (35 mm equivalent): approx. 25-600 mm
• Horizontal angle of view: up to approx. 74°
• Outputs: HDMI UHD 2160/29.97p and 25p; HDMI/3G-SDI HD up to 1080/59.94p and 50p; HDMI 4:2:2 10-bit
• USB-C device mode with UVC/UAC
• 3.5 mm stereo mic/line input with plug-in power
• Control: IP (RJ-45), RS-422 or USB
• Pan: ±175°, tilt: -30° to +90°
• NDI HX2 available as an optional activation
• Dimensions: approx. 160 × 192 × 166 mm; approx. 2.05 kg including ceiling bracket
