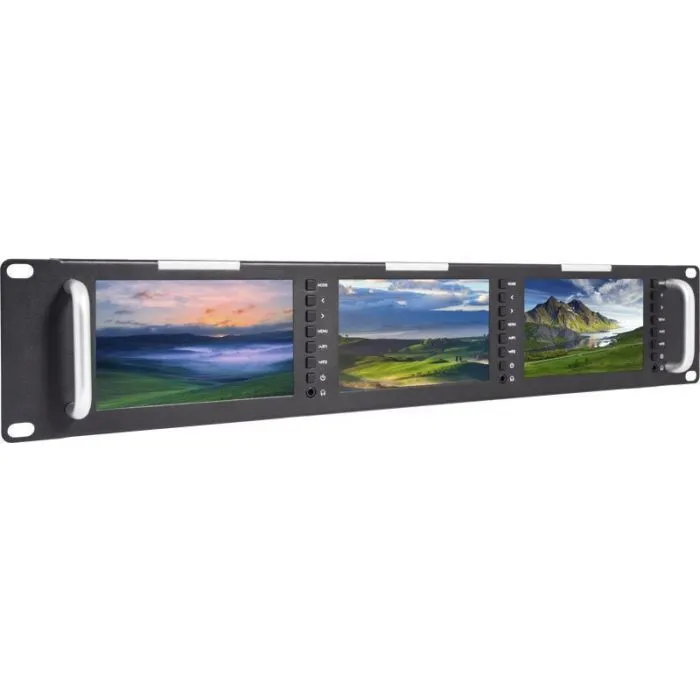

Seetec monitor T51 （3 x 5" 2RU） 3*5 inch

The Seetec T51 is a triple 5" 2RU rack-mount broadcast LCD monitor whose three 5" screens display SD, HD and 3G-SDI video. The monitor is extremely thin and lightweight, with a full metal case that makes it more robust and helps dissipate heat. Such monitors are used in TV news production, post production, programme broadcasting and TV broadcasting trucks.

Each screen has its own input and output connections, plus a front tally light with three colours (red, green, yellow) controlled via the DB-15 ports on the rear panel.

• Screens: 3 x 5" TFT LCD with LED backlight, 800×480
• Brightness: 500cd/m²
• Contrast: 500:1
• Viewing angle: horizontal 140° / vertical 120°
• Inputs (per screen): 3G-SDI x 1, HDMI x 1, CVBS x 1, audio (L/R) x 2
• Outputs: 3G-SDI x 1, HDMI x 1, CVBS x 1
• Audio: stereo headphone output
• Functions: Peaking Focus Assist, Pixel to Pixel, Centre Marker, Screen Marker (80%, 85%, 90%, 93%, 96%, 2.35:1), Image Flip, Check Field, Image Freeze, Zoom
• In the box: monitor, 3A power adapter, tally kit, operation manual
