OM System LS-P5 Kit

The OM SYSTEM LS-P5 Linear PCM Recorder offers professional filmmakers, YouTube enthusiasts, musicians, students and journalists the sound quality and versatility for which the LS series audio recorders are renowned - in a compact and robust design that makes it the ideal companion as a stand-alone recorder or as a camera microphone.

TRESMIC II directional control

Equipped with a zoom microphone that offers a unique audio control that mixes the input signal from the three microphones and adjusts the polar pattern in 21 steps while maintaining audio quality.

96 kHz/24-bit, linear PCM recording quality

Supports a maximum sampling frequency of 96 kHz and linear PCM recording with a quantisation bit rate of up to 24 bits (three times the information of a CD).

Bluetooth-enabled

Wireless audio monitoring and full control from a smartphone with the DVR.Remote app for iOS and Android. Up to a distance of max. 10 m.

125dB SPL sound pressure microphones

Distortion-free recording of everything from loud music and ambient noise to birdsong and lectures.

Intelligent Auto, Manual and Smart recording modes

Intelligent Auto dynamically adjusts the volume automatically. Manual mode allows you to fine-tune the recording level to the volume of the audio source.

Bright sound, ideal for voice recording

Bright Sound mode provides clearer recordings of the spoken word, e.g. for vlogging, lectures or meetings.

Custom scene modes for easy recording

Not only can you save your custom settings, but the LS-P5 also offers 2-microphone noise reduction for recording in noisy environments.

Pre-recording ensures you don't miss a thing

With 2-second pre-recording mode, you'll never miss an opportunity to record birdsong or lectures due to a control delay.

Composite USB audio mode

Use as a USB microphone and speaker. Perfect for streaming or virtual online meetings.

Microphone and headphone jack

Whether you're connecting an external microphone or using it as a camera mic, the LS-P5 offers MIC-IN and line-in as well as a headphone output.

Up to 37 hours of battery life

Includes 2 AA NiMh rechargeable batteries that can be charged via USB. Also supports parallel operation and charging of batteries with AC adapter.

Technical data:

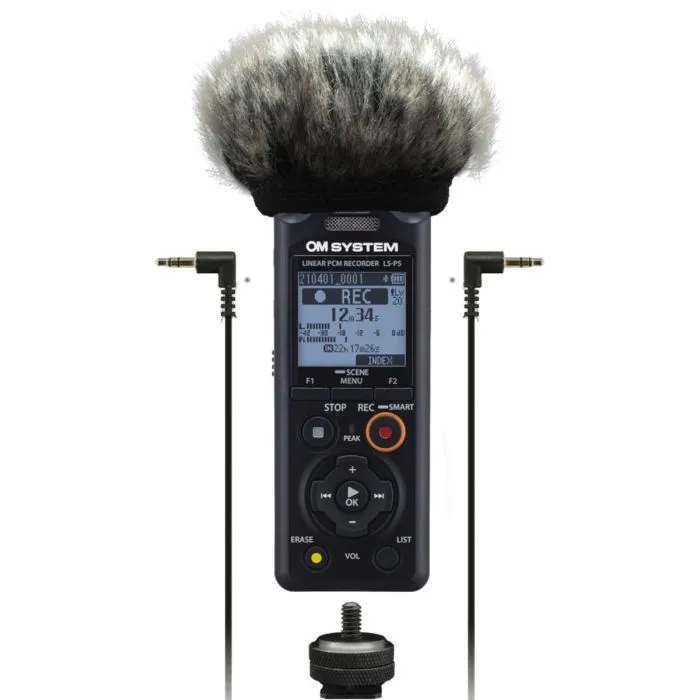

• Videographer kit including windscreen, hot shoe adapter and 3.5 mm audio connection cable
• High-resolution matrix display (108 x 84 dots).
• Display size: 1.43" (27.5 x 23.9 mm)
• Display backlight: white
• Operation via push-buttons
• HOLD switch
• Playback formats: FLAC / PCM (WAV) / MP3
• Recording formats:

PCM (WAV) up to 96 kHz / 24 bit

FLAC up to 96 kHz / 24 bit

MP3 up to 320 kbps

• PCM (WAV) up to 96 kHz / 24 bit
• FLAC up to 96 kHz / 24 bit
• MP3 up to 320 kbps
• Index: Up to 99 in one file
• Recording programmes:

Music

Dictation

Meeting

Conference

Noise situation

Lecture

Speech recognition

Custom 1

Custom 2

• Dictation
• Meeting
• Conference
• Noise situation
• Lecture
• Speech recognition
• Custom 1
• Custom 2
• Improved recording functions:

Recording monitor

Manual control of volume level

Recording level adjustment (external microphone)

Pre-recording function

Low-cut filter

DVM zoom microphone setting

Overdubbing

Slate Tone

Test Tone

• Recording monitor
• Manual control of volume level
• Recording level adjustment (external microphone)
• Pre-recording function
• Low-cut filter
• DVM zoom microphone setting
• Overdubbing
• Slate Tone
• Test Tone
• Edit:

Fade In and Fade Out (PCM)

Normalise (PCM/MP3)

• Fade In and Fade Out (PCM)
• Normalise (PCM/MP3)
• Bluetooth headphone monitoring
• Playback speed

adjustable (50 - 350%)

• adjustable (50 - 350%)
• Up to 20,000 Hz frequency response
• USB Micro B Power Delivery
• Low-cut filter
• 3 Mic Zoom 21 levels
• Bluetooth smartphone control
• Intelligent Auto, Manual and Smart volume control
• 16 GB built-in memory
• MicroSD slot: suitable for microSDHC / microSDXC
• Max. supported microSD: 2 TB
• Slate Tone and Test Tone
• 125 dB SPL sound pressure
• Power supply:

Up to 37 hours battery life (up to 56 hours with alkaline batteries)

Battery: 2 x AA Mignon

• Up to 37 hours battery life (up to 56 hours with alkaline batteries)
• Battery: 2 x AA Mignon
• Bright sound mode
• Composite USB microphone mode
• USB: Micro USB 2.0
• Dimensions (H x W x D): 112.2 x 39.6 x 16.1 mm
• Weight: 78 g
