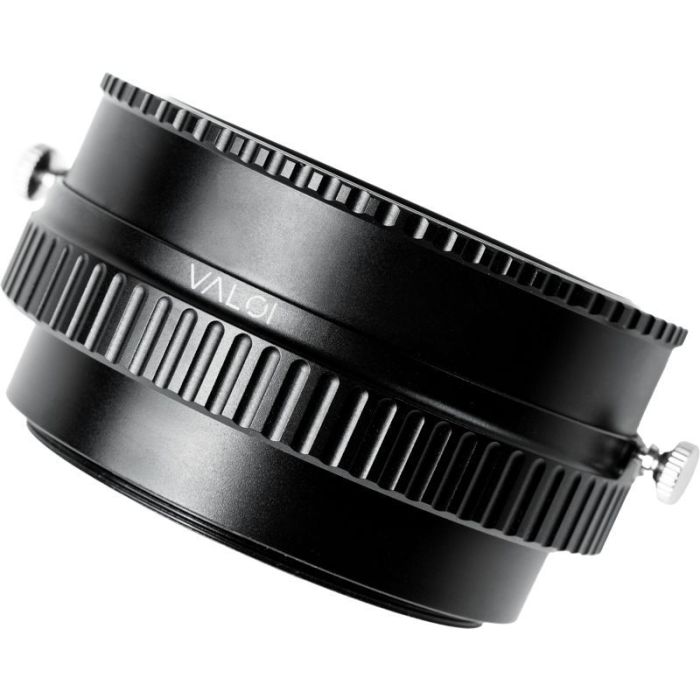

Valoi Easy Precision Framing Helicoid

The Valoi Easy Precision Framing Helicoid provides 20mm of stepless framing adjustment for the easy35 and easy120 scanning systems. It allows precise framing to optimise scan resolution and composition without cropping during post-processing.

The helicoid screws between the lens and the distance tubes supplied with these systems. Its smooth adjustment can be locked with two thumb screws to hold the selected length and maintain focus. When used vertically, a heavy camera and lens may still move the helicoid; test it with your equipment before vertical use.

• Compatible with easy35 and easy120, including most lenses and cameras used with these systems
• Thread: 62x0.75
• Approximate length: 20mm fully collapsed, 40mm fully extended
• Brass core with an aluminium shell and threads, anodised black
• Product dimensions without packaging: 92 x 80 x 22mm
• Weight: 128g
• Includes: Precision Framing Helicoid
