JJC FDA S1 film digitizing adapter and LED light set

JJC FDA S1 Film Digitizing Adapter And LED Light Set
The JJC FDA S1 is specially designed for negative copying and converts film to digital files.
The adapters allow you to attach the set to different lenses and the angle of view and tilt can be adjusted by using the view angle adjustment ring on the barrel. Dedicated film holders for both film strips and mounted slides2 are included, as well, to help hold the film taut and to benefit handling. Beside that, the set is particularly well suited for the Nikon D850 camera due to its dedicated Negative Digitizer mode and ability to automatically reverse colors in camera to expedite the digitizing process. Additionally, you can use the set together with the included LED Light3 to get high quality light source and improve image sharpness.


The supplied LED light features 42 built in ultra bright LEDs and those LEDs are covered with a screen to produce a soft and even light. The color difference can be effectively reduced for the LED's 95+ color rendering index and 6500K color temperature. Besides that, the connection cable of the LED is about 1.5m / 4.9' and it requires a 5V 2A USB power adapter (not included) for power supply. The controller on the cable allows you to turn on or turn off the LED and enables you to adjust the brightness of this light (the brightness has 10 levels available). You can insert the slide mount holder or strip film holder into the holder insertion slot on the LED to provide high quality light source when carrying on a negative copying. Additionally, the support on its back is designed for using on a flat surface; the 1/4" 20 female thread on the bottom is designed for mounting on a tripod or stand.

Note:


It is recommended to select the image stabilizer switch of the lens to "OFF" when using the FDA S1.
Do NOT place the film in front of the turned on LED light for a long time to avoid damage.
,
LED light


Net Weight: approx. 73g
Dimension: 71 x 91.2 x 52.8mm / 2.8 x 3.6 x 2.1"
Material: ABS
LED Quantity: 42
Color Rendering Index(CRI): 95+
Color Temperature: 6500K
Illuminance: 10cm / 3.9" , 6392lux; 20cm / 7.9", 1473lux; 30cm / 11.8", 988lux
Brightness: 10 levels
Power Draw: 7.5W
Interface: Micro USB
Cable Length: approx. 1.5m / 4.9'

Slide Mount Holder

Holds two mounted 35mm slides
Net Weight: approx. 16g
Dimension: 155 x 52 x 4.7mm / 6.1 x 2.0 x 0.2"

Strip Film Holder

Holds six frame strip of 35mm film
Net Weight: approx. 35g
Dimension: 275 x 52 x 4.7mm / 10.8 x 2.0 x 0.2"
,

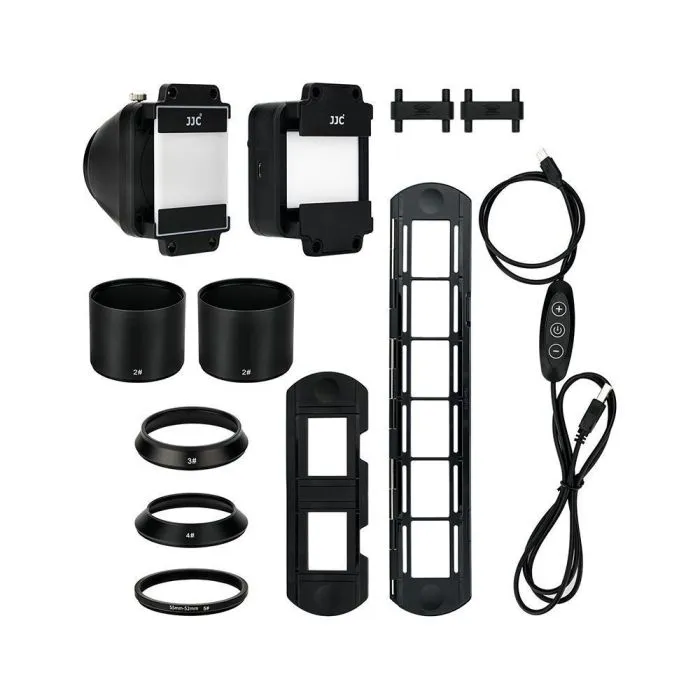

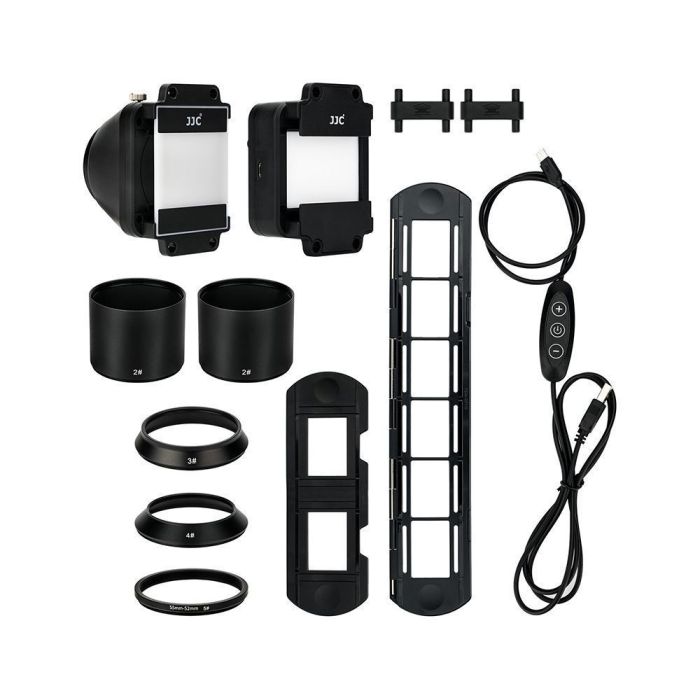

1x Barrel 1#
2x 52~52mm Adapter 2#
1x 62~52mm Adapter 3#
1x 67~52mm Adapter 4#
1x 55~52mm Adapter 5#
1x Slide Mount Holder
1x Strip Film Holder
1x LED Light
1x Instruction Manual
,
It can be used to photograph 35mm film and is compatible with some Canon, Nikon and Sony cameras and the following select lenses:

Canon RF 100mm f/2.8L Macro IS USM Lens (requires supplied Adapter 4# and Adapter 2#)
Canon EF S 60mm f/2.8 USM Lens [requires supplied Adapter 2# (2pcs)]
Nikon AF Micro NIKKOR 60mm f/2.8D Lens (requires supplied Adapter 3# and Adapter 2#)
Nikon NIKKOR Z MC 50mm f/2.8 Macro Lens (requires supplied Adapter 3#)
Nikon AF S DX Micro NIKKOR 40mm f/2.8G Lens
Sony FE 50mm f/2.8 Macro Lens (requires supplied Adapter 5#)
Sony FE 90mm f/2.8 Macro G OSS Lens [requires supplied Adapter 3# and Adapter 2# (2pcs)]
