Elinchrom D-Lite RX 4/4 Softbox to Go Set

D-Lite RX is the perfect entry point for anyone interested in creative lighting design. Ideal for portraits of children, family, pet photography and for product photography of small businesses who want to better present their products.

The D-Lite RX series developed in Switzerland will not only enrich your photography for many years, but can be expanded and upgraded with qualified equipment and accessories when needed.

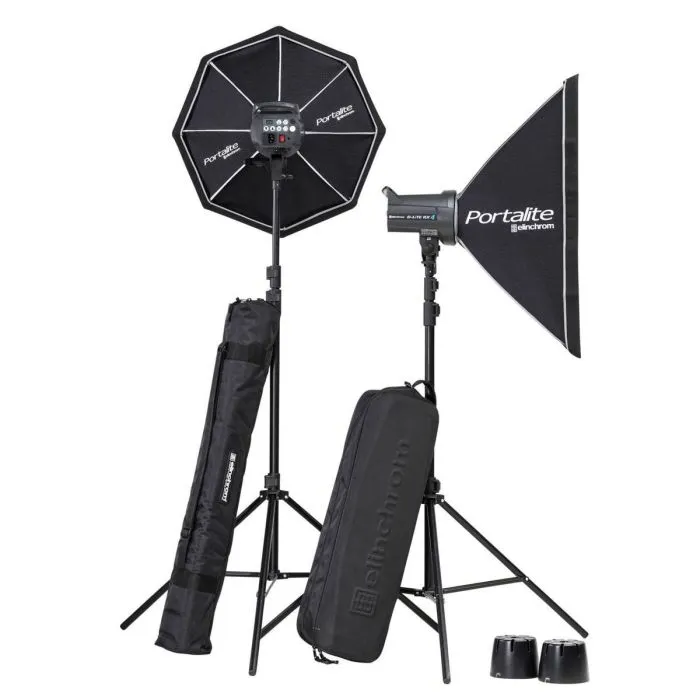

The D-Lite RX 4 To Go Set includes two flash units with portable Portalite softboxes made of quality materials and two lamp stands. The set also contains the EL-Skyport Transmitter for flash triggering, flash power adjustment (modeling light on/off and group/frequency channel settings).

The rich basic equipment allows immediate entry into studio photography. With only two carrying bags, the studio is portable and can be stored space-saving for the next use.

Technical specifications

Scope of Delivery:

• D-Lite RX is the third generation of D-Lite compact flashes, now with all RX functions.
• EL-Skyport remote control
• EL-Skyport Software Mac ® / Win ®, every function is adjustable with the computer
• Visual and acoustic flash confirmation programmable
• Pilot light, programmable proportionality
• Flash light setting, variably programmable, 1/10 - 5/10 or f-stops
• Integrated EL-Skyport RX receiver, compatible with EL-Skyport Speed Transmitter and USB RX Computer Module
• Speed synchronization mode, depending on camera, type-dependent up to 1/320 s
• Pre-flash detection when camera speed flashes are used for triggering
• 5V synchronization to protect digital camera systems
• Automatic ventilation depending on internal temperature
• Elegant, light, robust and functional housing design
• Reflector bayonet with quick release; accepts Rotalux softboxes up to approx. 135 cm
• Rubberized handle with safety holder
• Tilt head with extra umbrella holder for larger umbrella shaft diameters
• Power in Joules / Ws: 400
• Aperture: 1m, 100 ISO, 48° reflector: 64.3
• Adjustable aperture values: 5
• Control range in Joules / Ws: 25-400 (1/1 - 1/16)
• Flash duration (T0.5): 1/800 s
• Flash sequence min/max. 230 V: 0.35 s / 1.2 s
• Flash sequence min/max. 115 V: 0.35 s / 1.6 s
• Color temperature in Kelvin: 5500°K
• Flash power adjustment: automatic with power reduction
• Flash voltage stability in %: -/+ 5
• Mains voltage: Multivolt 90-260 V
• Modeling light mode: proportional, min., max., off
• Modeling light 230 V: E27 100 W / 196 V (effective 150 W)
• Modeling light 115 V: E27 100 W / 90 V (effective 150 W)
• EL-Skyport (integrated): 8 frequency channels, 4 groups, all RX functions
• Sync voltage: 5 V, protects digital camera systems
• Sync socket: 3.5 mm Jack
• Temperature & overvoltage protection: Microprocessor controlled cooling fan, switches on at increased temperature
• Rated power consumption / 230 V / 50 Hz: 150 W
• Rated power consumption / 115 V / 60 Hz: 180 W
• Softbox/reflector connection: Elinchrom standard bayonet with quick release
• Umbrella holder: centered, with self-clamping Ø 7 mm. Extra holder on tripod head for larger umbrella shafts
• Tripod connection: Standard socket Ø 5/8" (16 mm)
• Dimensions in cm (with protective cap): 26 x 14 x 19
• Weight: 1.5 kg (3.3 lbs)
• 2 x Compact D-Lite RX 4
• 2 x Flash tube D-LITE 2/4, Ranger Quadra S
• 2 x Modeling lamp 100W/196V
• 2 x Elinchrom power cable for compact devices, 5m
• 1 x EL-Skyport Transmitter Plus
• 1 x Elinchrom sync cable 5m 3.5mm Jack
• 1 x Portalite Softbox 66 x 66cm
• 1 x Deflector translucent white 14cm
• 1 x Elinchrom carrying bag for 2/4 D-Lite-it
• 1 x Stand set with 2x30101 and 1x33230
• 2 x Protective cap
• 1 x Portalite Softbox Octa 56cm
