SmallRig 5248 CB75 Camera Base Battery Kit

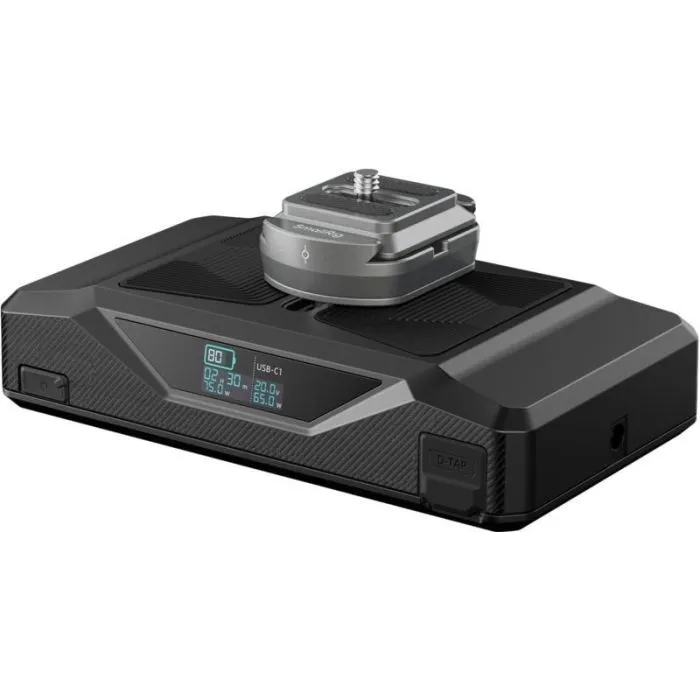

The SmallRig 5248 CB75 camera base battery kit comprises components 4826 and 4486. Component 4826 serves as both a battery and a baseplate, with a top 1/4"-20 screw for attachment to cameras or camera cages and a bottom 1/4"-20 threaded hole for tripod mounting.

Arca-Swiss quick release plates and compatible cages allow slide-in mounting with automatic locking. Two D-Tap ports, two 65 W USB-C ports and an 8 V DC port can power multiple devices simultaneously. The battery supports a full recharge in 2 hours with 65 W charging. LG cells, protection circuitry and a full-colour HD display provide power storage, protection and real-time power monitoring.

• Battery parameters: 14.76 V, 5000 mAh, 73.8 Wh; stated combined cell capacity: 20000 mAh (4 x 5000 mAh).
• D-Tap1 and D-Tap2: input up to 16.8 V/6 A; output 10.4-16.8 V, up to 8 A.
• USB-C1 and USB-C2 input/output: up to 65 W each; supported profiles include 5 V/3 A, 9 V/3 A, 12 V/3 A and 20 V/3.25 A.
• USB-C protocols: PD3.0, QC2.0, QC3.0, PPS, AFC, DCP-1.5 A and APPLE-2.4 A.
• 8V-OUT: 7.8-8.4 V, up to 3 A; discharge cut-off voltage: 10.4 V.
• Charging temperature: 0-45°C; discharging temperature: -15-60°C.
• Materials: aluminium alloy, PC and ABS.
• Weight: 613.0 ± 10.0g.
• Included: CB75 base battery, HawkLock H38 Arca-Swiss quick release mounting plate, 100 W USB-C to USB-C PD cable (30cm), 2 Allen keys and operating instructions.
