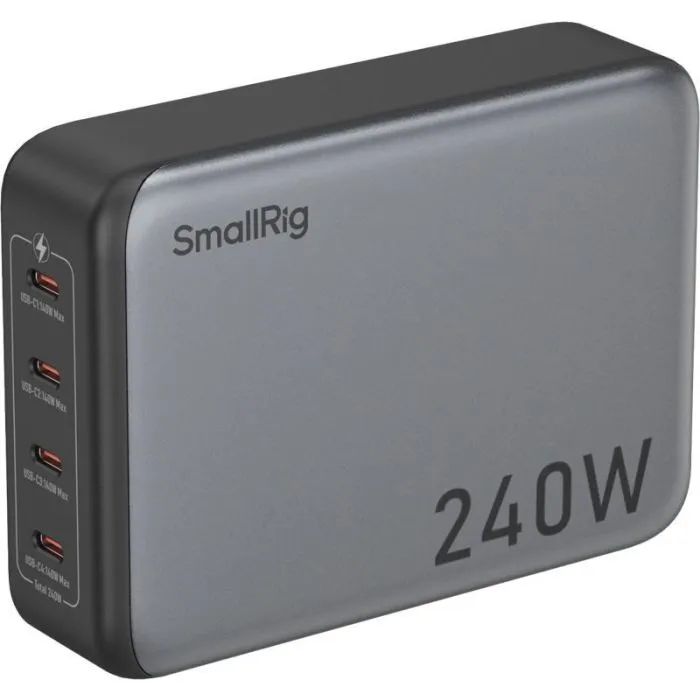

SmallRig 4752 240W 4-Port PD Power Adapter

The SmallRig 4752 is a compact 240 W PD power adapter with four USB-C ports for simultaneous charging. It supports V-mount and NP-F batteries, rechargeable camera batteries, cameras with direct battery charging, smartphones, tablets and computers, including laptops. Each port supports PD3.1 fast charging at up to 140 W and has short-circuit and overcurrent protection.

• Input: 100-240 V AC, 50 / 60 Hz, 4.0 A. Total output: up to 240 W.
• Single-port mode, USB-C1 / C2 / C3 / C4: 5 V / 3 A, 9 V / 3 A, 5 V / 5 A, 20 V / 5 A, 28 V / 5 A; maximum 140 W.
• Two-port mode, C1 + C2 or C3 + C4: 100 W + 40 W, 40 W + 100 W or 70 W + 70 W; maximum 140 W. C1 + C3, C1 + C4, C2 + C3 or C2 + C4: 140 W + 100 W; maximum 240 W.
• Three-port mode, C1 + C2 + C3 or C1 + C2 + C4: 70 W + 70 W + 100 W, 100 W + 40 W + 100 W or 40 W + 100 W + 100 W; maximum 240 W.
• Three-port mode, C2 + C3 + C4 or C1 + C3 + C4: 140 W + 60 W + 40 W, 140 W + 40 W + 60 W or 140 W + 50 W + 50 W; maximum 240 W.
• Four-port mode, C1 + C2 + C3 + C4: 100 W + 40 W + 60 W + 40 W; 100 W + 40 W + 40 W + 60 W; 100 W + 40 W + 50 W + 50 W; 70 W + 70 W + 50 W + 50 W; 70 W + 70 W + 60 W + 40 W; 70 W + 70 W + 40 W + 60 W; 40 W + 100 W + 40 W + 60 W; 40 W + 100 W + 60 W + 40 W; or 40 W + 100 W + 50 W + 50 W. Maximum 240 W.
• Certifications: CE and RoHS.
• Includes one 240 W charger, one EU-standard AC power cable, one adapter bracket and one user manual.
