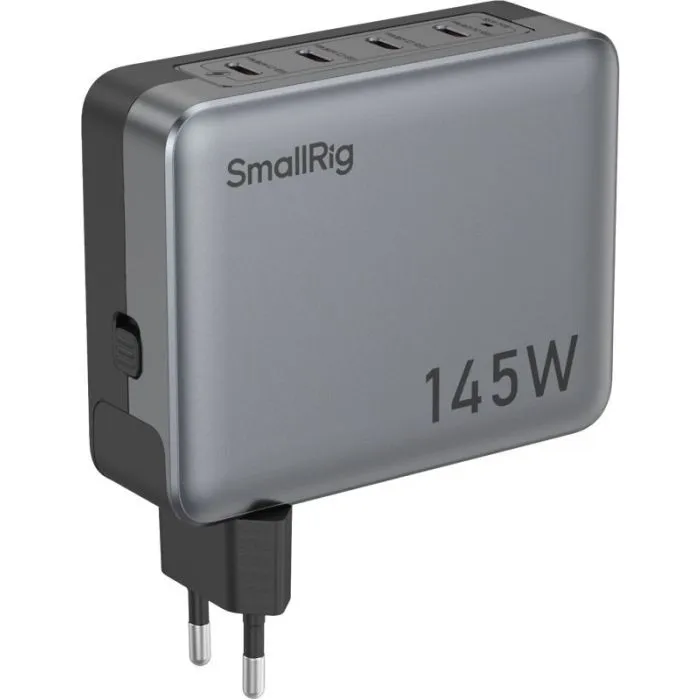

SmallRig 4748 145W 4-Port PD Power Adapter

The SmallRig 4748 is a compact 145 W power adapter with 4 USB-C ports for simultaneous charging. It supports V-mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, tablets and computers, including laptops.

All ports support fast charging. USB-C1 and C2 support PD3.1 with up to 140 W from a single port; C3 and C4 each support up to 45 W. Each output has short-circuit and overcurrent protection. The power indicator lights when power is connected and switches off when disconnected.

• Input: 100-240 V AC, 50/60 Hz, 2.2 A.
• Single-port mode: C1 or C2 up to 28 V / 5 A (140 W); C3 or C4 up to 20 V / 2.25 A (45 W). Maximum total: 140 W.
• Dual-port mode, C1 or C2 with C3 or C4: up to 20 V / 5 A on C1 or C2 and 20 V / 2.25 A on C3 or C4. With C1 + C2: up to 20 V / 3.25 A per port. With C3 + C4: up to 9 V / 2.22 A per port. Maximum total: 145 W.
• Triple-port mode, C1 + C2 + C3 or C4: C1 up to 20 V / 3.25 A, C2 up to 20 V / 1.5 A, C3 or C4 up to 20 V / 2.25 A. With C1 or C2 + C3 + C4: C1 or C2 up to 20 V / 5 A, C3 and C4 each up to 9 V / 2.22 A. Maximum total: 145 W.
• Four-port mode: C1 up to 20 V / 3.25 A, C2 up to 20 V / 1.5 A, C3 and C4 each up to 9 V / 2.22 A. Maximum total: 145 W.
• Certifications: CE and RoHS.
• Includes 1 power adapter and 1 user manual.
