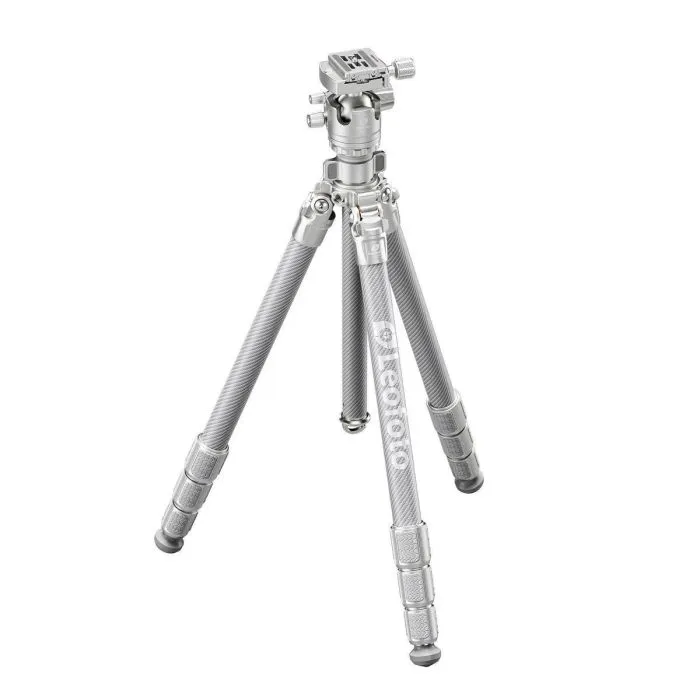

Leofoto LG-284C+LH-36R(Silver) tripod carbon with ball head Silver

The Leofoto LG-284C+LH-36R is a Gabriel series carbon tripod kit in silver with a ball head. It is also designed for use in sand and near water.

The open Q-shaped apex makes attaching accessories easier. The platform lock releases with half a turn, while the safety lock must be released to remove the platform or centre column.

Work without the centre column for more stable support, or add the included column for extra height. No tools are needed to fit or remove the column. Screws on the column prevent the mounting base and head from twisting.

The leg sections lock with just a 1/4 turn. The locks have non-slip pads, while the anti-rotation system prevents the sections from twisting relative to one another.

The leg locking system protects against sand and reduces water entering the tubes, but does not prevent it completely. Titanium alloy foot screws, tube plugs and spikes resist seawater corrosion.

The legs are made from 10-layer Toray carbon. The tripod has a 10-year warranty.

The included LH-36R ball head has a 36 mm ball, an 18 kg load capacity and a weight of 410 g. Two drop notches make switching from horizontal to vertical orientation easier. Numbered friction adjustment helps customise movement resistance, while the laser-engraved scale on the panning base helps rotate the camera precisely. The head has an Arca-Swiss quick release plate.

The apex has a 1/4" socket and a 3/8" socket with an anti-rotation feature for magic arms and other accessories.

Features

• Load capacity: 10 kg
• Maximum height with column: 158 cm
• Maximum height without column: 129 cm
• Minimum height: 16 cm
• Folded length: 54 cm
• Number of leg sections: 4
• Leg diameters: 28/25/22/19 mm
• Leg angles: 23/55/85°
• Locking mechanism: twist lock
• Material: 10X Toray carbon
• Kit weight: 1.62 kg
• Platform thread: 3/8"-16
• Included: tripod, LH-36R ball head, Arca-Swiss quick release plate, centre column, titanium spikes, Allen keys, bag, instructions
