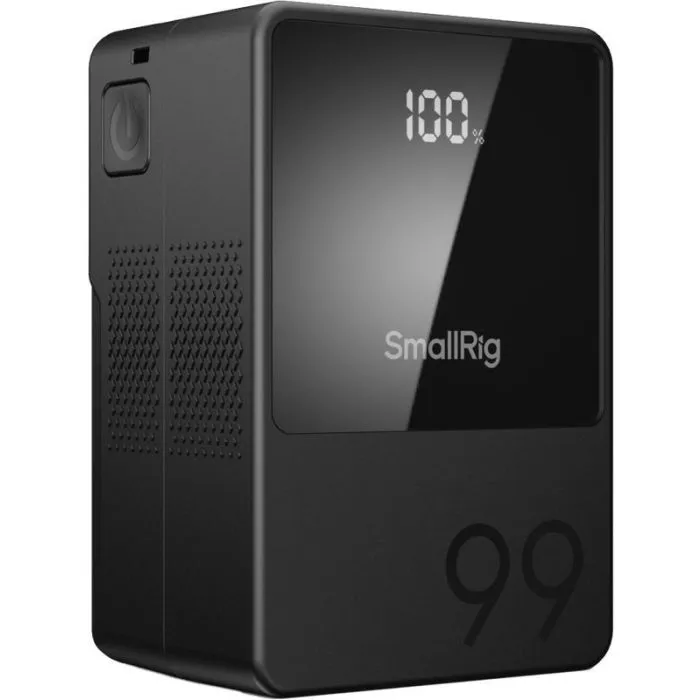

SmallRig 3580 V-Mount Battery Mini VB99

The SmallRig 3580 V-Mount Battery Mini VB99 is about 70% of the size of a normal V-mount battery thanks to its highly integrated design. It is lighter and more portable. The highly integrated BMS chip supports varied fast-charging protocols and bi-directional USB-C PD charging up to 100 W (max).

The battery is made of heat-resistant, fireproof PC material. The customized BMS system provides protection against over-current, short-circuit, over-temperature and over-voltage. USB-A, USB-C, D-Tap, DC 8V, DC 12V and V Mount interfaces allow powering a camera, monitor, wireless video transmitter, video light, mobile phone, laptop and other devices without a V-mount plate. An OLED digital display shows the battery status.

• Capacity: 14.54 V, 6800 mAh, 98.872 Wh
• Rated discharge power: 100 W
• USB-C input: up to 100 W; D-Tap / BP input: up to 6.84 A
• Output: USB-C up to 20 V / 5 A, USB-A up to 12 V / 2 A, BP/D-Tap up to 10 A, 8V OUT 8 V / 3 A, 12V OUT 12 V / 3 A
• Operating temperature: -15 °C to 60 °C; charging temperature: 0 °C to 45 °C
• In the box: VB99 Mini V-Mount battery, user manual
